30+ Years of Danish Experience & Expertise
High Quality & TÜV-Certified Safety
Tailored to Your Vehicle & Needs
0

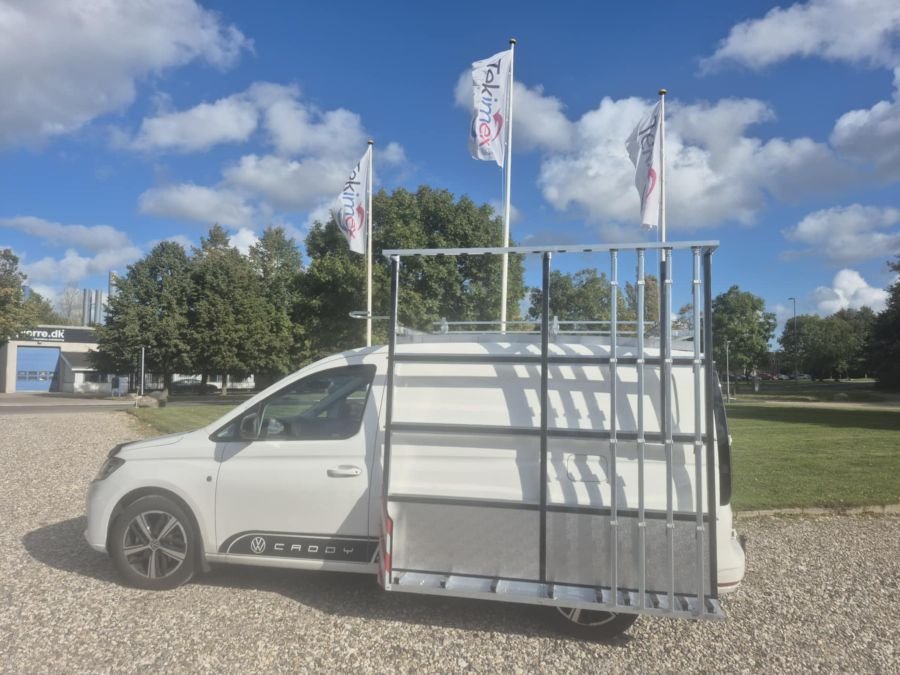

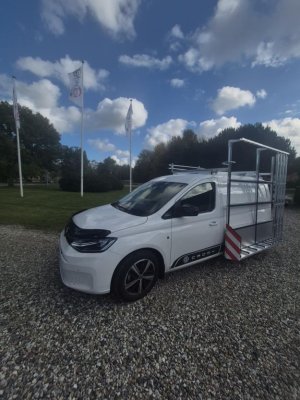

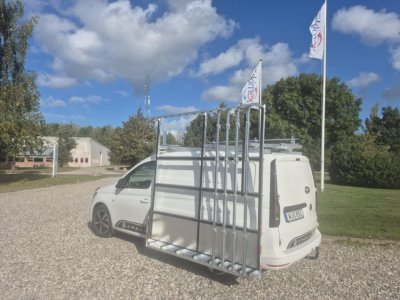

Glass rack type 5 - Volkswagen Caddy Van 2020-

3.466 €

(excl. VAT)
  • Made from premium aluminium
  • Customised for maximum safety
  • TÜV-certified design for practical application
  • Optimal stability during transport
  • Can hold up to 300 kg
  • Danish made
Model/Product no.: VWCVTY52020
Model year of the vehicle
Note: Length and height may vary slightly depending on the specific model year. Please select:
Mounting side
Always viewed in the driving direction.
Installation at Tekimex in Denmark?
Glass height
How tall are the glass sheets / panels you wish to transport?
Floor rail for 2-section glass rack
The choice of floor rail width depends on the materials you need to transport and, in some cases, on the country. Read more in the description below.
Telescopic bar for 2-section glass rack
If you want a low rack for daily use but need the option to transport larger glass occasionally – Takes up minimal space when not in use. Select how many bars you need. Read more in the description below.
Optional equipment
Make your daily work more efficient, safe, and professional with our selection of practical and certified equipment for glass transport and handling. Read more in the description below.
Wheelbase (specify in mm)
Production item

Yderligere information

Manufacturer:
Model/Product no.: VWCVTY52020
Car brand: Volkswagen
Model: Caddy
Production year: 2020, 2021, 2022, 2023, 2024, 2025
Length of the vehicle: 4400 mm
Height of the vehicle: 1819 mm

Beskrivelse

Glass rack type 5 designed from aluminium ensures stability and practical application. Essential for the glazier requiring maximum safety whilst transporting glass.

Glass rack type 5 always comes with a roof rack.

Choice of floor rail

Floor Rail Standard (9.5 cm)

The most used floor rail in Denmark. This model is approved and used by the majority of Danish glaziers.
Perfect for ordinary glass tasks with high stability and compact size.

Floor Rail Extra wide (13.5 cm)

Preferred by many when transporting windows with frames. The extra width offers stability and flexibility in loading.
Ideal for those working with complete window solutions. This is among the top-selling models in Sweden.

Floor Rail German model (20 cm)

This wider model is popular in Germany but is not approved in Denmark due to its width.

If you wish for a 20 cm floor rail for transport in Denmark, you need to have your car visited by a workshop to retrofit necessary equipment to make it legal.

Tiltable Floor Rail (9.5 cm or 20 cm)

Smart and space-saving solution!
The tiltable rail can be folded up when the glass rack is not in use, allowing your car to take up less space and be easier to manoeuvre.
Perfect for those who work flexibly.

If you wish for a 20 cm floor rail for transport in Denmark, you need to have your car visited by a workshop to retrofit necessary equipment to make it legal.

Telescopic bar

If you want a low stand on a daily basis but also have the option to occasionally transport larger glass, then choose the telescopic solution.

The price varies depending on how many bars you wish to have on the telescopic rod.

Adjustable bar for secure fastening of glass or windows. Perfect for transport and assembly takes up minimal space when not in use.

Telescopic bar

Optional equipment for Glass racks

Make your daily work as a glazier more efficient, safe, and professional with our selection of practical and approved equipment for glass transport and handling. Here you will find items such as ladder rollers and removable worktables.

Holder for glass support bars

A practical safety measure when unloading the glass. The bars can stand in a solid metal arc, so they do not tip and damage the glass.
Simple but indispensable for safe handling.

Holder for glass support bars

Ladder roller

This roller is mounted on the rear of the roof rack and makes it easy to push long profiles or ladders onto the roof effortlessly.
Save your back and save time.

Ladder roller

Profile tube

Approved tube for storing long glass profiles. Protects your profiles from rain, dirt, and loss during driving.
Safe, professional, and practical solution for daily use.

Movable safety stop

Especially effective for tall, narrow windows. Quickly mounted and prevents the glass from tipping during sharp braking.
A small detail that makes a big difference for safety.

Ladder steps

Integrated steps on the glass rack, allowing you to easily and safely climb up and reach equipment on the roof.
Good ergonomics and increased safety.

Ladder steps

Clamping system for windows

When the floor rail is 9.5 cm and you have a window frame of 11.5 cm, this smart clamping system with straps is the solution.
Secure attachment without altering your rack.

Clamping system for windows

Removable Worktable

A nifty and functional table that can easily be mounted on the inside or outside of the glass rack. Provides you with a comfortable working position for cutting and processing on-site.
A must-have for efficient assembly tasks.

Removable Worktable

Swivelling stop plate

Practical stop plate that can be swivelled to the side when not in use. Provides flexible support for glass during transport and unloading.

Swivelling stop plate

Extra lighting (front and rear)

Extra lights mounted at the front and rear providing better visibility and increased safety when transporting in the dark.

You need to connect the lights to the car yourself when the rack is mounted.

Light frontLight rear
