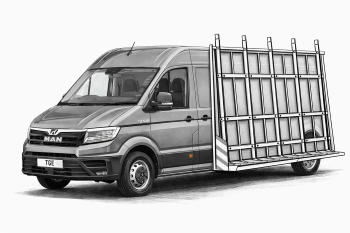

Glass rack type 5 - MAN TGE Panelvan L2H2 2017-

4.400 €

(excl. VAT)
  • Made from premium aluminium
  • Customised for maximum safety
  • TÜV-certified design for practical use
  • Optimal stability during transport
  • Can hold up to 500 kg
  • Danish manufactured
Model/Product no.: MTGETY5L2H22017
Model year of the vehicle
Note: Length and height may vary slightly depending on the specific model year. Please select:
Mounting side
Always viewed in the driving direction.
Installation at Tekimex in Denmark?
Glass height
How tall are the glass sheets / panels you wish to transport?
Floor rail for 5-section glass rack
The choice of floor rail width depends on the materials you need to transport and, in some cases, on the country. Read more in the description below.
Telescopic bar for 5-section glass rack
If you prefer a low rack for daily use but want the option to transport larger glass occasionally – Takes up minimal space when not in use. Choose how many bars you want. Read more in the description below.
Optional equipment
Make your daily work more efficient, safe, and professional with our selection of practical and certified equipment for glass transport and handling. Read more in the description below.
Wheelbase (specify in mm)
Production item

Yderligere information

Manufacturer:
Model/Product no.: MTGETY5L2H22017
Car brand: MAN
Model: TGE
Production year: 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025
Length of the vehicle: L2 (6836 mm)
Height of the vehicle: H2 (2590 mm)

Beskrivelse

Glass rack type 5 designed from aluminium ensures stability and practical use. Essential for the glazier demanding maximum safety during glass transport.

Glass rack type 5 always comes with a roof rack.

Choice of floor rail

Floor rail Standard (9.5 cm)

The most used floor rail in Denmark. This model is approved and used by most Danish glaziers.
Perfect for general glazing tasks with high stability and compact size.

Floor rail Extra wide (13.5 cm)

Preferred by many when transporting windows with frames. The extra width offers stability and flexibility in loading.
Ideal for those working with complete window solutions. This is among other things, the best-selling model in Sweden.

Floor rail German model (20 cm)

This wider model is popular in Germany but not approved in Denmark due to its width.

If you want a 20 cm floor rail for transport in Denmark, a visit to a workshop is necessary to retrofit essential equipment for legality.

Tiltable Floor Rail (9.5 cm or 20 cm)

Smart and space-saving solution!
The tiltable rail can be folded up when the glass rack is not in use, reducing the space taken by your vehicle and making it easier to manoeuvre.
Perfect for flexible work situations.

If you want a 20 cm floor rail for transport in Denmark, a visit to a workshop is necessary to retrofit essential equipment for legality.

Telescopic bar

If you want a low rack for daily use but also the option to transport larger sheets of glass occasionally, the telescopic solution is the answer.

Price varies based on the number of bars you want to have telescopic functionality on.

Adjustable bar for secure anchoring of glass or windows. Perfect for transport and installation minimal space required when not in use.

Telescopic bar

Optional equipment for Glass racks

Make your glazing workday more efficient, safe, and professional with our range of practical and approved equipment for glass transport and handling. Here youll find ladder rollers and detachable worktables, among other things.

Holder for glass support bars

A practical safety measure when unloading the glass. The bars can be placed in a sturdy metal cradle, preventing them from toppling over and damaging the glass.
Simple but indispensable for safe handling.

Holder for glass support bars

Ladder roller

This roller is mounted at the back of the roof rack, making it easy to slide long profiles or ladders onto the roof with ease.
Protect your back and save time.

Ladder roller

Profile tube

Approved tube for storing long glass profiles. Protects your profiles from rain, dirt, and loss during transport.
A safe, professional, and practical daily solution.

Movable safety stop

Especially effective with tall, narrow windows. Quickly mounted and prevents the glass from toppling over during hard braking.
A small detail that makes a big difference in safety.

Ladder steps

Integrated steps on the glass rack allow you to easily and safely climb up to reach equipment on the roof.
Good ergonomics and increased safety.

Ladder steps

Clamping system for windows

When the floor rail is 9.5 cm and you have a window frame of 11.5 cm, this clever clamping system with straps is the solution.
Secure anchoring without altering your rack.

Clamping system for windows

Detachable worktable

A handy and functional table that can be easily mounted on the inside or outside of the glass rack. It provides a convenient working position for cutting and processing on site.
A must-have for efficient installation tasks.

Detachable worktable

Swivelling stop plate

Practical stop plate that can be swung to the side when not in use. Provides flexible support for glass during transport and unloading.

Swivelling stop plate

Extra lighting (front and rear)

Extra lights mounted front and rear provide better visibility and increased safety when transporting in the dark.

You need to connect the lights to the vehicle yourself when the rack is installed.

Front lightRear light
